$3.50The Story

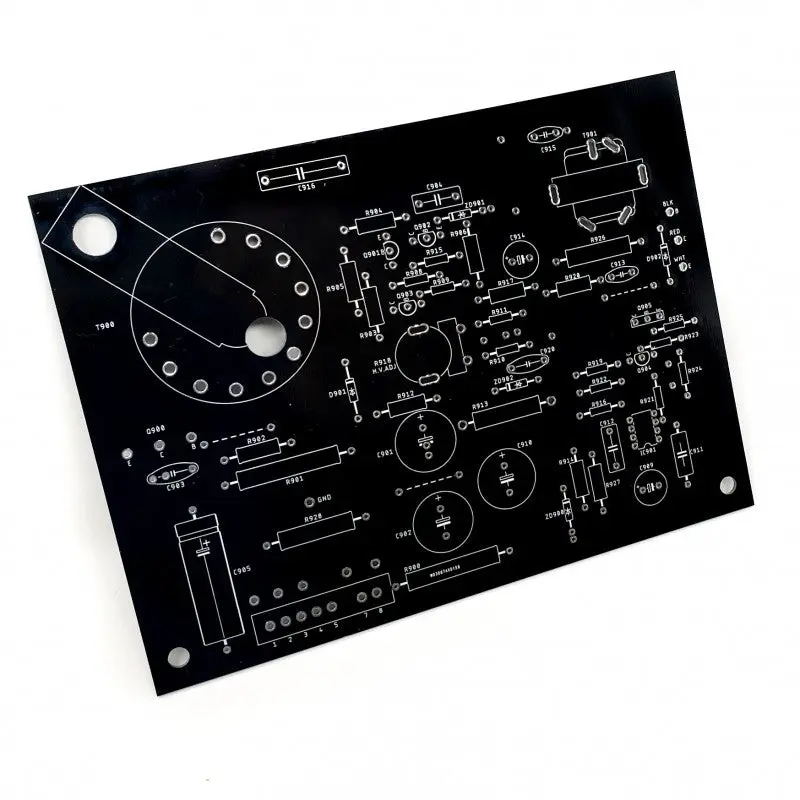

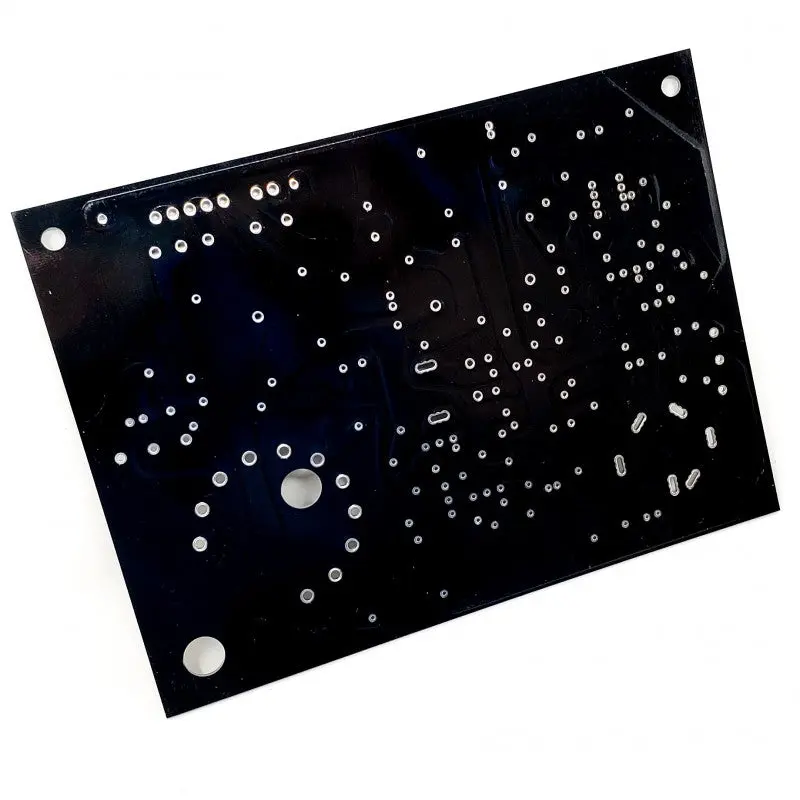

Have a destroyed HV section you want to fix? This board is an exact replica of the original p316 version of the Wells Gardner 6100 high voltage section.
Repair, replace or just improve you monitors chassis with this reproduction done with 2oz poured copper traces.
Build Note:
D901 is marked backwards. Anode goes toward Flyback and Cathode goes towards R912. Double check polarities and placement against your original PCB.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Have a destroyed HV section you want to fix? This board is an exact replica of the original p316 version of the Wells Gardner 6100 high voltage section.
Repair, replace or just improve you monitors chassis with this reproduction done with 2oz poured copper traces.
Build Note:
D901 is marked backwards. Anode goes toward Flyback and Cathode goes towards R912. Double check polarities and placement against your original PCB.
