Original: $5.50
-65%$5.50
$1.92The Story

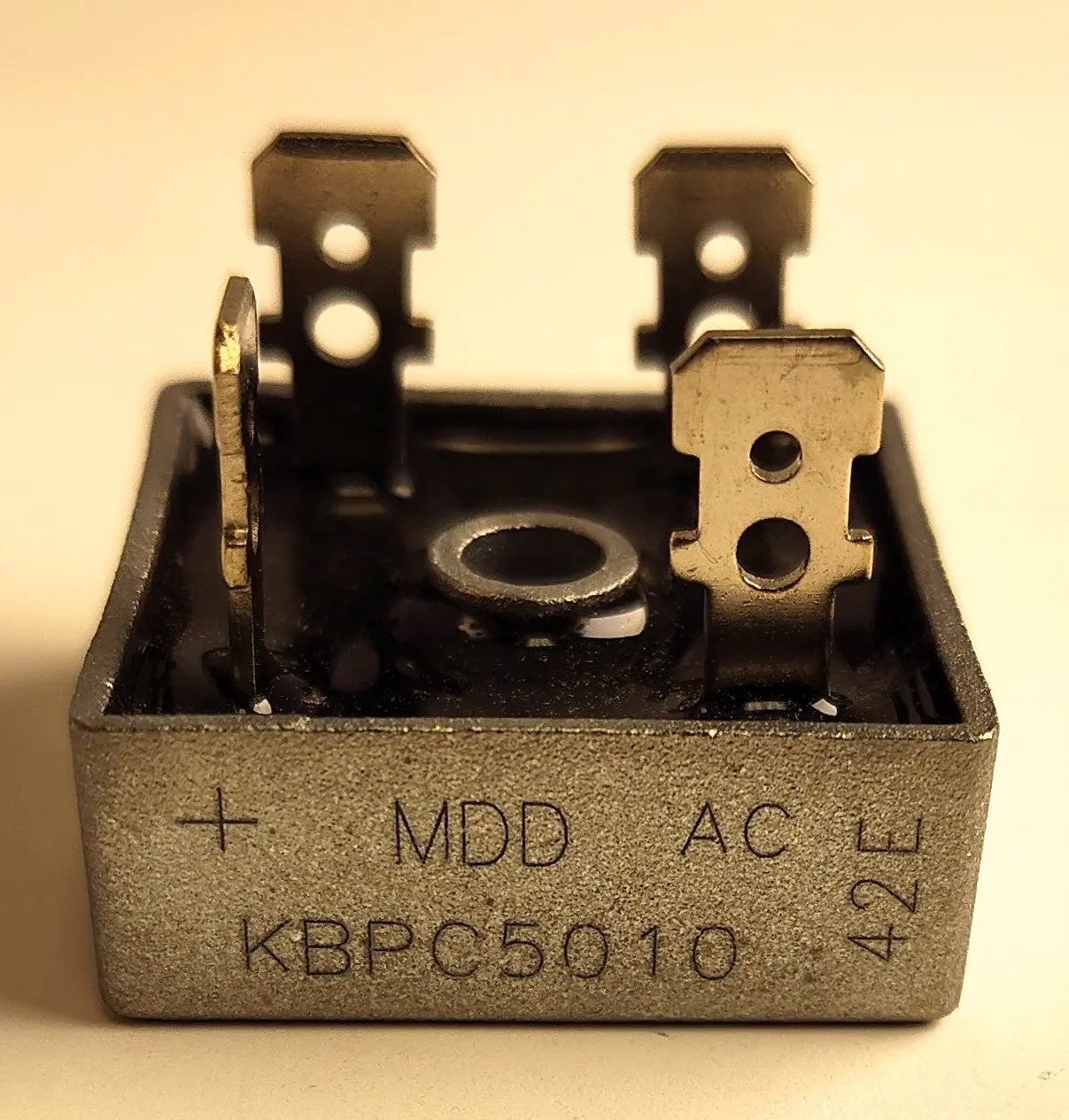

Professional-grade silicon bridge rectifier designed for arcade power supplies, MAME builds, and cabinet restoration projects. This 50-amp rectifier features a robust KBPC molded plastic package with UL 94V-0 flammability rating, making it ideal for high-current applications in arcade electronics.
Technical Specifications
- Maximum average forward current: 50A at 55°C case temperature
- Peak forward surge current: 500A (8.3ms single half sine-wave)
- Maximum repetitive peak reverse voltage: 50-1000V (model dependent)
- Forward voltage drop: 1.1V max at 25A per element
- Operating temperature: -55°C to +150°C
- Case: JEDEC KBPC molded plastic body
- Terminals: Solder plated per MIL-STD-750
Arcade Applications
Essential component for power supply repairs and builds in:
- Classic arcade cabinet restorations
- MAME cabinet power systems
- Custom arcade builds requiring high-current rectification
- Replacement for failed rectifiers in vintage machines
- DIY power supply projects
Why Choose This Rectifier
- High temperature soldering guaranteed (260°C/10 seconds)
- Low reverse leakage for efficient operation
- Printed circuit board compatible design
- Clear polarity marking for easy installation
- Professional-grade components for reliable arcade operation
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
