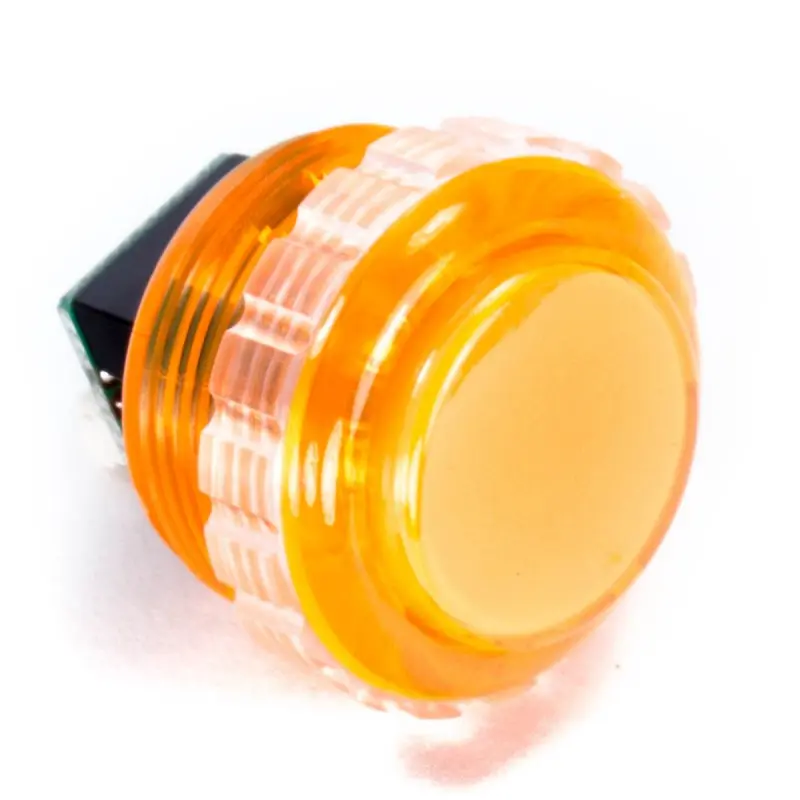

Seimitsu PSL-30N 30 mm Screw-in Button - Clear Orange

Orange, 30mm, translucent convex Japanese style buttons. Great buttons for new panels, fight sticks, and candy cabinets.

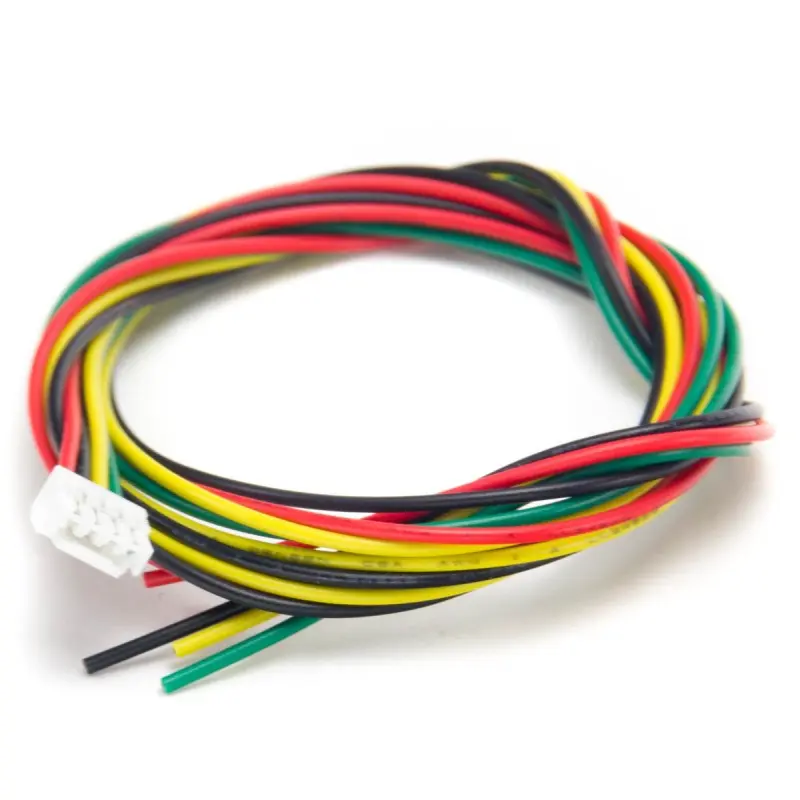

******* Harness (PSL-H) for the micro switch is not included. You need to purchase it separately.

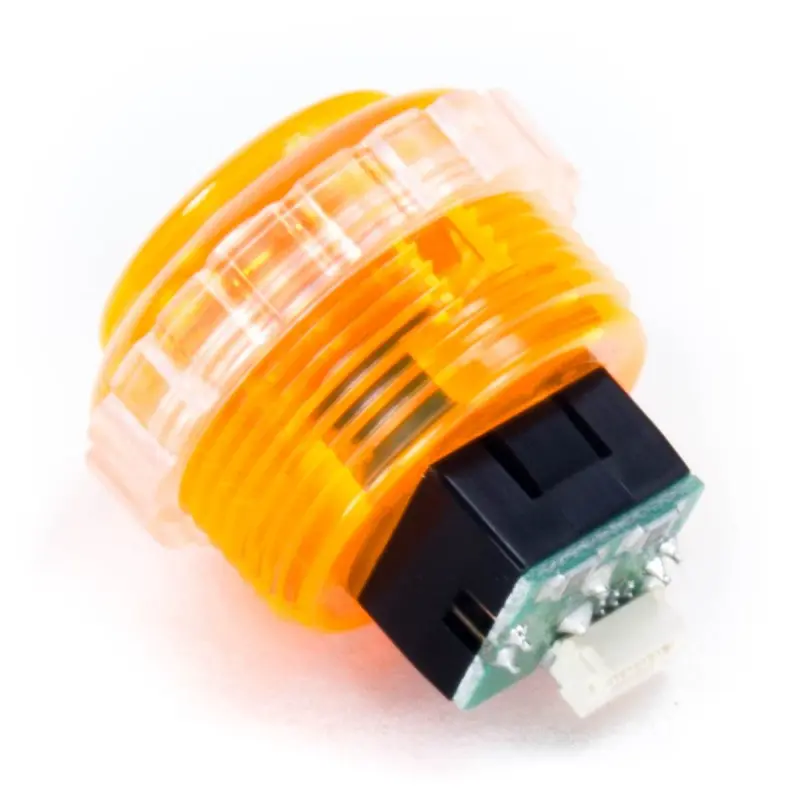

The Seimitsu PSL-30N has a threaded clear color body with a clear plunger. This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that is over 1/4" thickness.

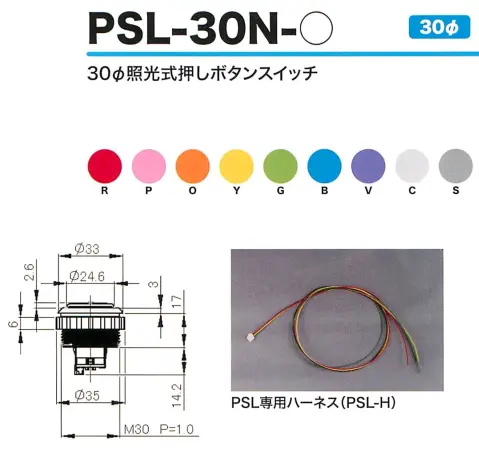

Specification:

• Translucent rim, Translucent color plunger
• Diameter: 30 mm (1.181 inch)
• Overall diameter: 34.5 mm (1.358 inch)
• Installation depth: 32.5 mm (1.28 inch)
• .110" quick connects
• For Metal, wooden or plastic/fiberglass control panels
• Button, locking nut and microswitch with LED included
• Screw-in buttons


Microswitch Specification:

• Product Name: MM9-PSU-5V
• Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
• Require PSL-H harness to use
• Built in 5VDC LED

• Operating force: 100 ± 30g
• Stroke distance to Operating Position: 2.5 ± 0.3mm
• Bounce back to Free Position: Less than 10mSec
• Mechanical Endurance (Cycle): Over 2,000,000 times
