$1.38The Story
The Seimitsu PS-15 Black pushbutton is a low profile snap-in pushbutton for those panels with a tight fit. If space is a concern, these buttons are for you. With a slight convex plunger and snap in installation, you'll be hittin' that box in no time!

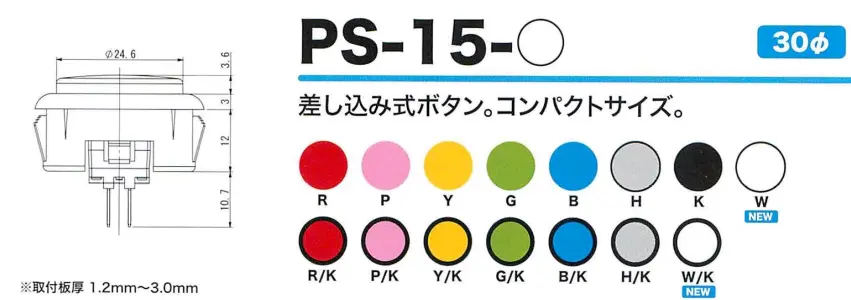

This button has a much shorter body compared to other models and can be mounted in material with 1.2mm to 3mm thickness.
Specification:
- Solid rim, Solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 21 mm (0.83 inch)
- .110" quick connects
-
Snap-in buttons
Microswitch Specification:
- Product Name: MM9-3
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Seimitsu PS-15 Black pushbutton is a low profile snap-in pushbutton for those panels with a tight fit. If space is a concern, these buttons are for you. With a slight convex plunger and snap in installation, you'll be hittin' that box in no time!
This button has a much shorter body compared to other models and can be mounted in material with 1.2mm to 3mm thickness.
Specification:
- Solid rim, Solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 21 mm (0.83 inch)
- .110" quick connects
-
Snap-in buttons
Microswitch Specification:
- Product Name: MM9-3
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
