The Story
The SANWA OBSN-24 is the little brother to the Sanwa OBSN-30 threaded pushbutton. Use as a start, select or turbo button.
These buttons are compatible with many lines of fight sticks. These are low-profile buttons are specifically for sticks that use a wooden panel.

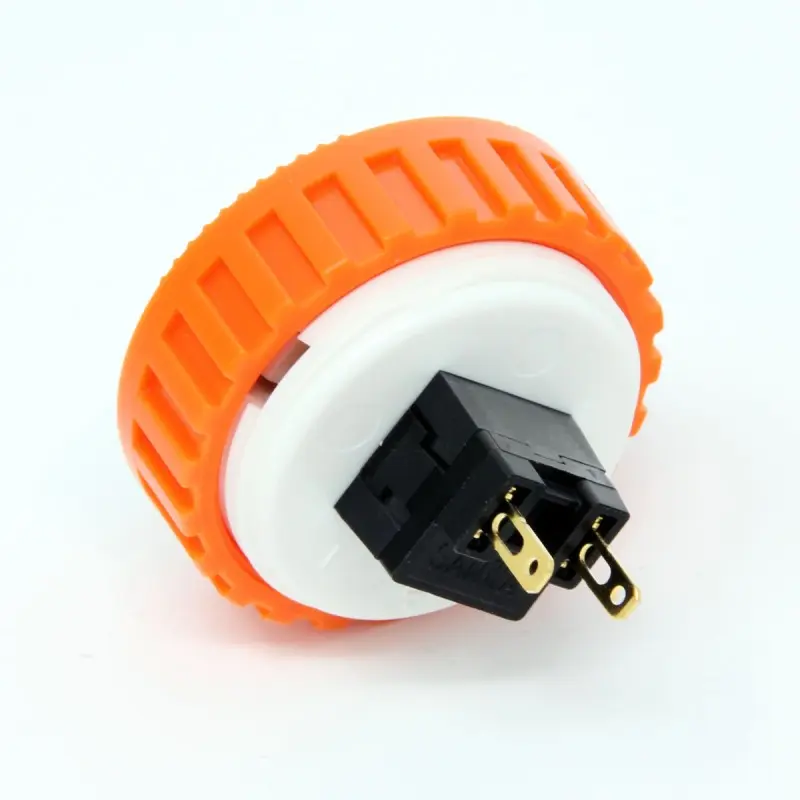

Sanwa's screw ring allows you to adjust for varying thicknesses in case surfaces, and offer the best reaction time, smoothest and quietest of any button. The buttons are available in a variety of colors for great customization.
Specifications
- Size: 24mm diameter
- Mount Type: Screw-in with adjustable ring
- Terminals: .110 quick connect
Switch(SW-68) Specification:
- Operating position(OP): 0.85mm
- Total travel position(TTP): 2.53mm
- Required force to move button from FP: 27g
- Operating Force(OF): 55g
- Total travel Force(TTF): 81g
- Rating: DC12V100mA
- Insulation resistance (IR): DC250V/50MΩ over between terminals
- Withstanding voltage (DWV): AC250V/1 minutes between terminals
- Operating temperature range: -20~+60°c
- Lifespan: 1 million under 5VDC10mA
- Contact resistance (ECR): 50mΩ below
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The SANWA OBSN-24 is the little brother to the Sanwa OBSN-30 threaded pushbutton. Use as a start, select or turbo button.
These buttons are compatible with many lines of fight sticks. These are low-profile buttons are specifically for sticks that use a wooden panel.
Sanwa's screw ring allows you to adjust for varying thicknesses in case surfaces, and offer the best reaction time, smoothest and quietest of any button. The buttons are available in a variety of colors for great customization.
Specifications
- Size: 24mm diameter
- Mount Type: Screw-in with adjustable ring
- Terminals: .110 quick connect
Switch(SW-68) Specification:
- Operating position(OP): 0.85mm
- Total travel position(TTP): 2.53mm
- Required force to move button from FP: 27g
- Operating Force(OF): 55g
- Total travel Force(TTF): 81g
- Rating: DC12V100mA
- Insulation resistance (IR): DC250V/50MΩ over between terminals
- Withstanding voltage (DWV): AC250V/1 minutes between terminals
- Operating temperature range: -20~+60°c
- Lifespan: 1 million under 5VDC10mA
- Contact resistance (ECR): 50mΩ below
