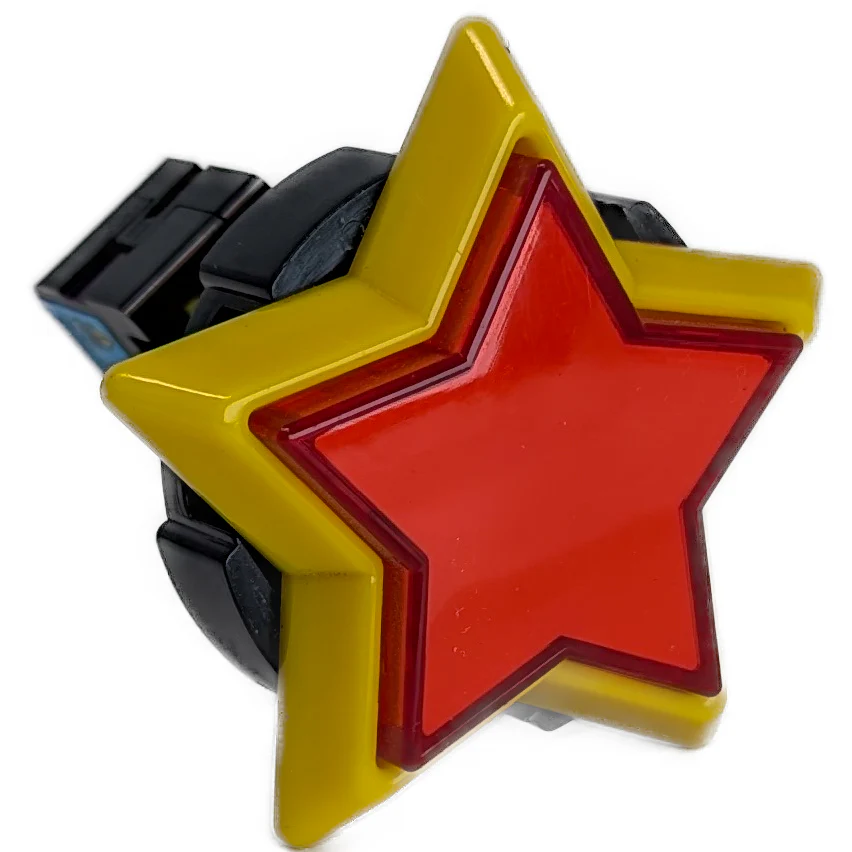

Sanwa Star-Shaped Illuminated Button
Bring a unique touch to your arcade or bar top with this star-shaped illuminated button. Its vibrant light will give your setup a distinct, personalized style. Available in multiple colors, including red, white, blue, yellow, pink, and green. The convenient one-touch locking system makes installation easy and ensures the bulb stays securely in place over time.

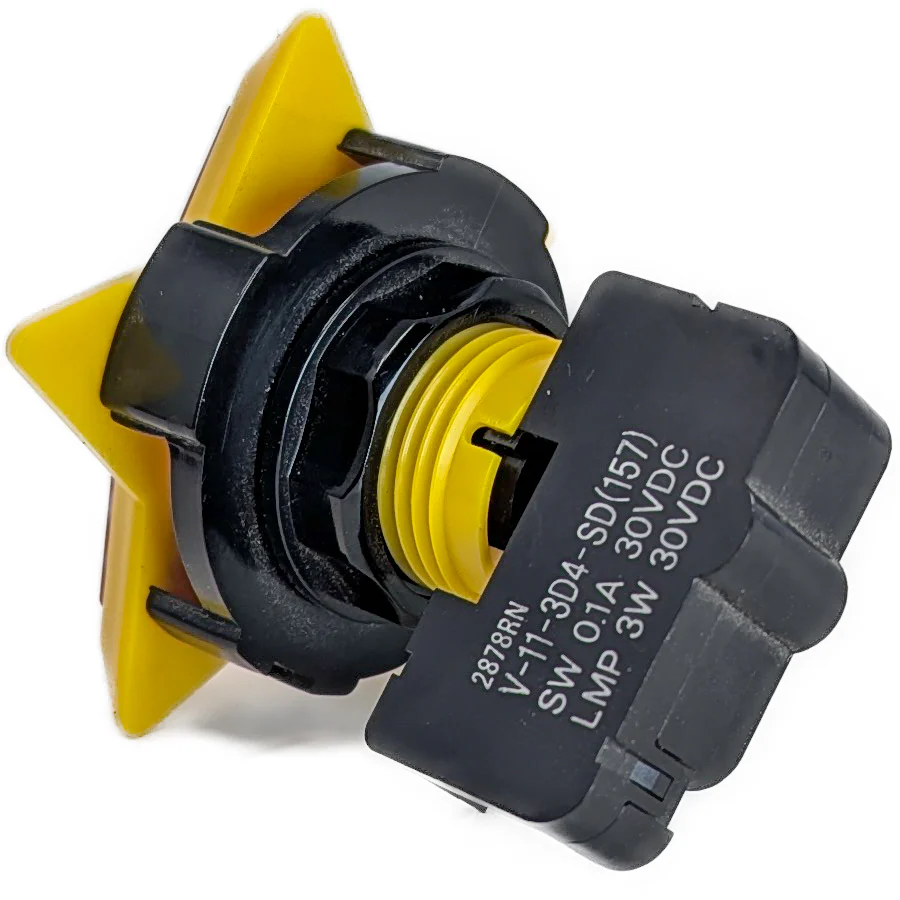

This star button comes with a halogen bulb, microswitch, and tightening screw. Please ensure your control panel has enough depth for the assembly, as it requires a height of 56.6mm (including the bulb).
Note: The required Sanwa LHS-H cable is not included and must be purchased separately.
Specifications:
- Required drilling diameter: ⌀ 33mm (± 0.1mm)
- Maximum control panel thickness: 7mm
- Star diameter: ⌀ 68mm
- Included components: Bulb holder with microswitch (OBSA-LHSlF-LN)
- Total height (above panel): 64.8mm
