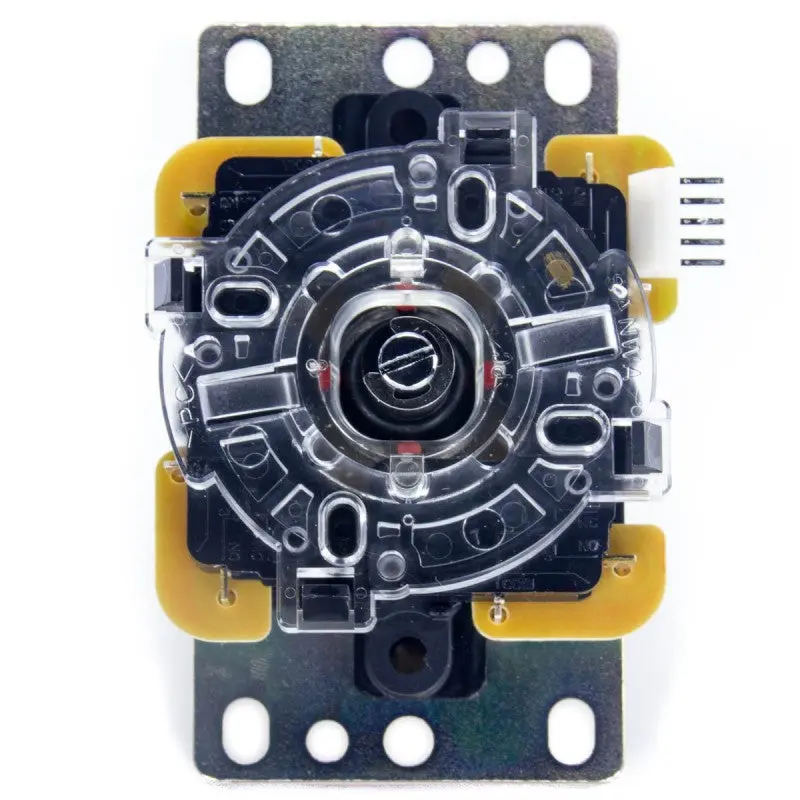

Sanwa OEM Arcade Joystick with short travel and light spring pressure, made in Japan.
Easily Switchable from 8 to 4-way operation by rotating the inner part of the restrictor plate. Or try one of our custom octagon or circle restrictor plates at our custom restrictor section.
You can also pick up one of our custom actuators or custom springs to mod the feel to exactly the way you like it!
Specifications
- Shaft length: 32.5mm (to bottom of ball top)

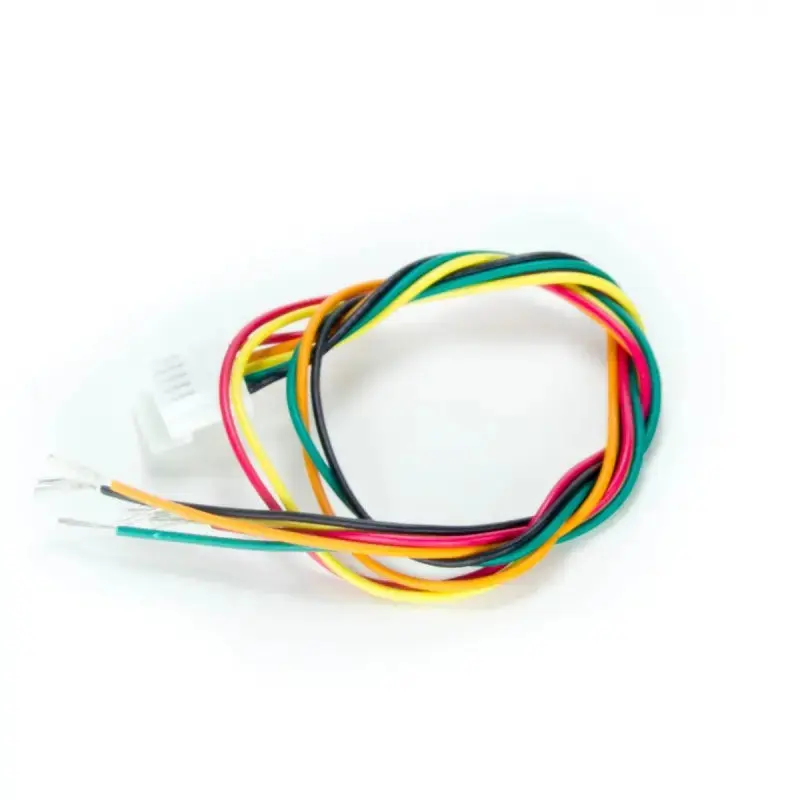

- 5-pin male connector (requires JLF-H harness, sold separately)
- 8-way/4-way switchable restrictor plate
- Short travel distance with light spring tension
- Made in Japan by Sanwa Denshi
Wiring Pinout
From left (top view, connector facing forward): 1-Black (Ground), 2-Green (Up), 3-Yellow (Down), 4-Orange (Left), 5-Red (Right)
Enclosed are: Stick unit, mounting plate, and 1 black dust washer
*** Sanwa uses Loctite to the screws on the joystick to secure the mounting plate. The screws are easily get stripped if you are trying to swap the mounting plate. We recommend using the JIS version of Phillips drivers or removing the Loctite by using a heat gun.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Sanwa OEM Arcade Joystick with short travel and light spring pressure, made in Japan.
Easily Switchable from 8 to 4-way operation by rotating the inner part of the restrictor plate. Or try one of our custom octagon or circle restrictor plates at our custom restrictor section.
You can also pick up one of our custom actuators or custom springs to mod the feel to exactly the way you like it!
Specifications
- Shaft length: 32.5mm (to bottom of ball top)
- 5-pin male connector (requires JLF-H harness, sold separately)
- 8-way/4-way switchable restrictor plate
- Short travel distance with light spring tension
- Made in Japan by Sanwa Denshi
Wiring Pinout
From left (top view, connector facing forward): 1-Black (Ground), 2-Green (Up), 3-Yellow (Down), 4-Orange (Left), 5-Red (Right)
Enclosed are: Stick unit, mounting plate, and 1 black dust washer
*** Sanwa uses Loctite to the screws on the joystick to secure the mounting plate. The screws are easily get stripped if you are trying to swap the mounting plate. We recommend using the JIS version of Phillips drivers or removing the Loctite by using a heat gun.
