The Story

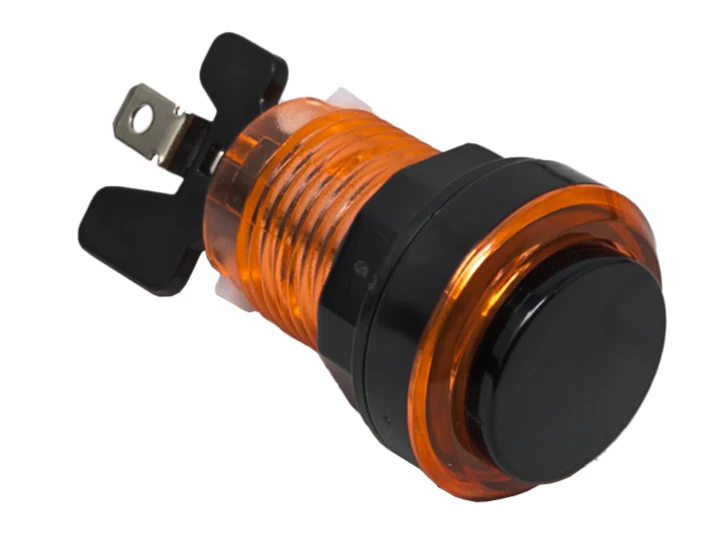

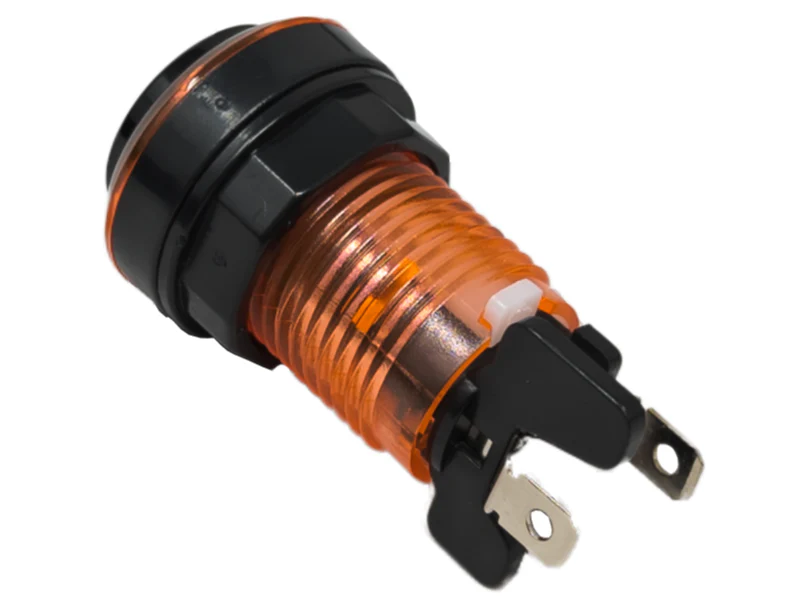

***Without LED, the plunger is similar to the Black plunger. It will become smoke when the LED is on.
What better way to add some style to your arcade games than a control panel with lit buttons. These buttons use a 12 volt LED placed in a holder under the control panel that fastens into the button base.
Buttons may come with one of 4 different microswitches, 20 gram, 50 gram, 125 gram, or the classic Cherry microswitch. 20 grams have an almost undetectable switching mechanism, and when mounted under a control panel are silent like leaf switches.
See our color inserts here or our black and white inserts here!
-
Made to fit 24mm to 30mm holes (this includes 1 1/8 holes)
-
Great for 1/16 inch metal to 3/4 inch wood control panels
-
Buttons come complete with all parts needed (LED, microswitch, locking nut, and washer)
-
Happ quality microswitches with .187" terminals
-
LED socket requires .250" terminals for wiring
Product Dimensions:
- Mounting hole required: 24mm - 28mm (0.95" - 1.1")
- Overall diameter of button across plunger: 32mm (1.26")
- Maximum depth of button from top of plunger to bottom of microswitch: 65mm (2.56")
To install, please see an explanation of which tabs to use in our solution database here.
