The Story

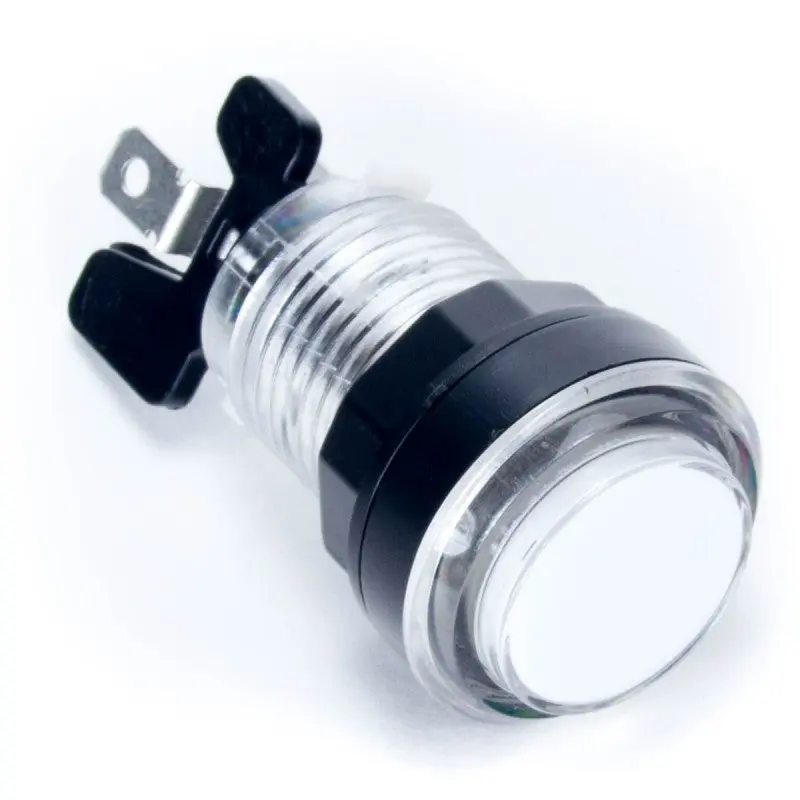

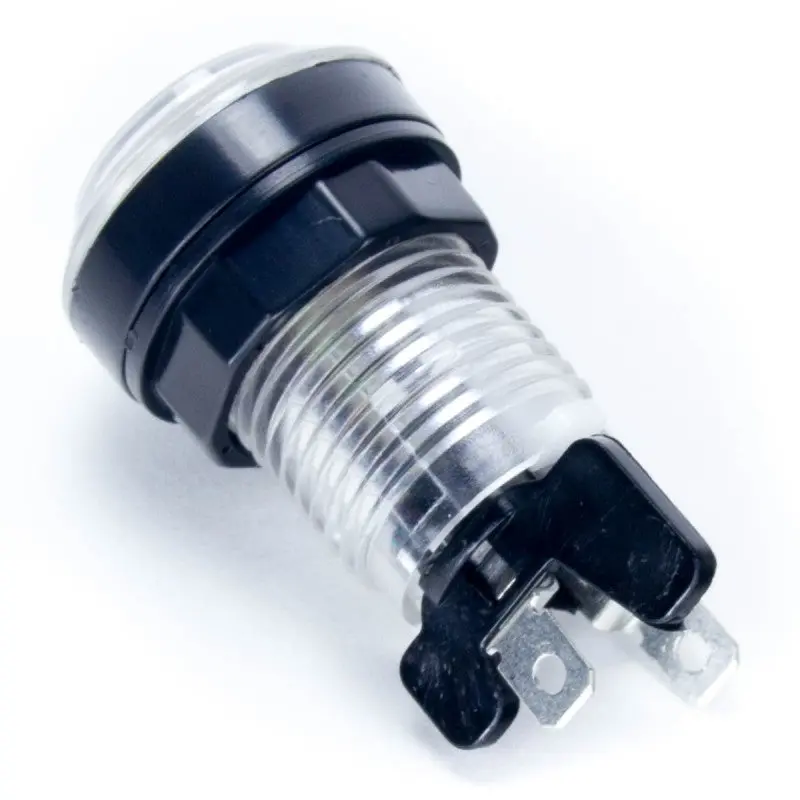

What better way to add some style to your arcade games than a control panel with lit buttons. These buttons use a 12 volt LED placed in a holder under the control panel that fastens into the button base.
Buttons may come with one of 4 different microswitches, 20 gram, 50 gram, 125 gram, or the classic Cherry microswitch. 20 grams have an almost undetectable switching mechanism, and when mounted under a control panel are silent like leaf switches.
See our color inserts here or our black and white inserts here!
-
Made to fit 24mm to 30mm holes (this includes 1 1/8 holes)
-
Great for 1/16 inch metal to 3/4 inch wood control panels
-
Buttons come complete with all parts needed (LED, microswitch, locking nut, and washer)
-
Happ quality microswitches with .187" terminals
-
LED socket requires .250" terminals for wiring
Product Dimensions:
- Mounting hole required: 24mm - 28mm (0.95" - 1.1")
- Overall diameter of button across plunger: 32mm (1.26")
- Maximum depth of button from top of plunger to bottom of microswitch: 65mm (2.56")
To install, please see an explanation of which tabs to use in our solution database here.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
What better way to add some style to your arcade games than a control panel with lit buttons. These buttons use a 12 volt LED placed in a holder under the control panel that fastens into the button base.
Buttons may come with one of 4 different microswitches, 20 gram, 50 gram, 125 gram, or the classic Cherry microswitch. 20 grams have an almost undetectable switching mechanism, and when mounted under a control panel are silent like leaf switches.
See our color inserts here or our black and white inserts here!
-
Made to fit 24mm to 30mm holes (this includes 1 1/8 holes)
-
Great for 1/16 inch metal to 3/4 inch wood control panels
-
Buttons come complete with all parts needed (LED, microswitch, locking nut, and washer)
-
Happ quality microswitches with .187" terminals
-
LED socket requires .250" terminals for wiring
Product Dimensions:
- Mounting hole required: 24mm - 28mm (0.95" - 1.1")
- Overall diameter of button across plunger: 32mm (1.26")
- Maximum depth of button from top of plunger to bottom of microswitch: 65mm (2.56")
To install, please see an explanation of which tabs to use in our solution database here.
