The Story

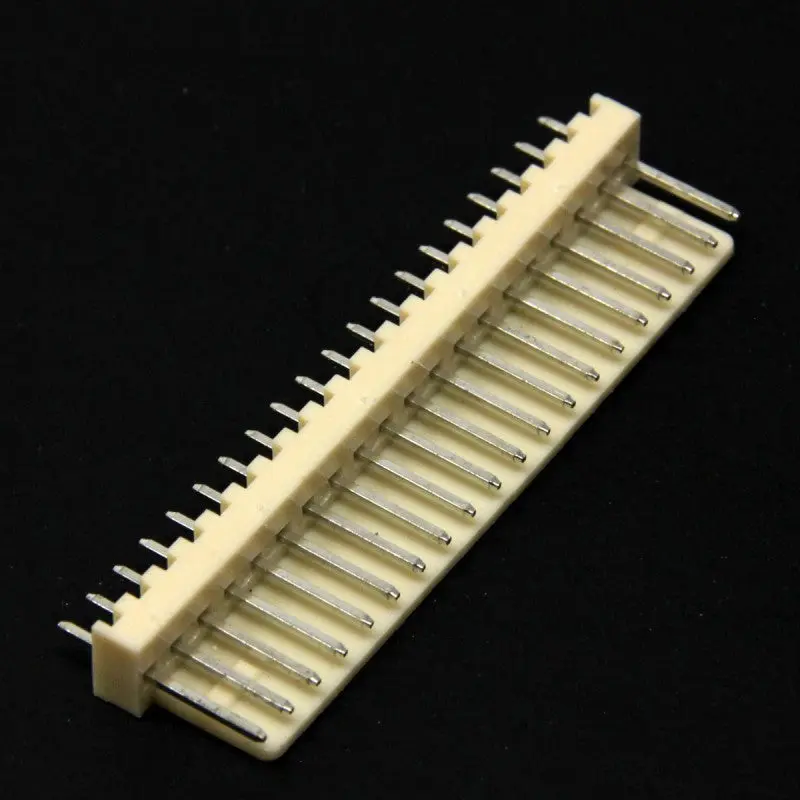

Professional-grade 20-pin header connector engineered for reliable connections in arcade cabinets, MAME builds, and custom control panels. This Molex KK-style 254 series connector features precision 2.54mm spacing and robust 3-amp current capacity per pin.
Technical Specifications
- Pin spacing: 2.54mm (0.1 inch)
- Current rating: 3 amps per connection
- Locking ramp design prevents accidental disconnection
- Keyed insertion ensures proper orientation
- Compatible with standard 20-pin ribbon cables
- Operating temperature: -40°C to +105°C
Perfect For
- Arcade1Up modification projects
- MAME cabinet control panel wiring
- Fightstick and custom controller builds
- PCB interconnects and breakout boards
- Joystick and button harness connections
Why Choose This Connector
The locking ramp mechanism and keyed design eliminate connection errors while ensuring long-term reliability in high-vibration arcade environments. Compatible with standard Molex KK tooling and crimp terminals, making it easy to create custom harnesses for your build.
Description
Professional-grade 20-pin header connector engineered for reliable connections in arcade cabinets, MAME builds, and custom control panels. This Molex KK-style 254 series connector features precision 2.54mm spacing and robust 3-amp current capacity per pin.
Technical Specifications
- Pin spacing: 2.54mm (0.1 inch)
- Current rating: 3 amps per connection
- Locking ramp design prevents accidental disconnection
- Keyed insertion ensures proper orientation
- Compatible with standard 20-pin ribbon cables
- Operating temperature: -40°C to +105°C
Perfect For
- Arcade1Up modification projects
- MAME cabinet control panel wiring
- Fightstick and custom controller builds
- PCB interconnects and breakout boards
- Joystick and button harness connections
Why Choose This Connector
The locking ramp mechanism and keyed design eliminate connection errors while ensuring long-term reliability in high-vibration arcade environments. Compatible with standard Molex KK tooling and crimp terminals, making it easy to create custom harnesses for your build.
