Atari Major Havoc Reproduction PCB Rev.E

For the first time since 1983 new Atari Major Havoc pcbs are available! Pilot your Catastrofighter to save your people from the reminants of the evil Vaxxian home world.

These amazing reproductions are officially licensed reproductions based on the original boards sets and are a new revision in the PCB history. At 11.5 x 20.75 inches, these boards are stunning wall pieces. These boards use the original bill of materials, follow the original schematics, and can be used to replace damaged original boards by using the original parts from these boards.

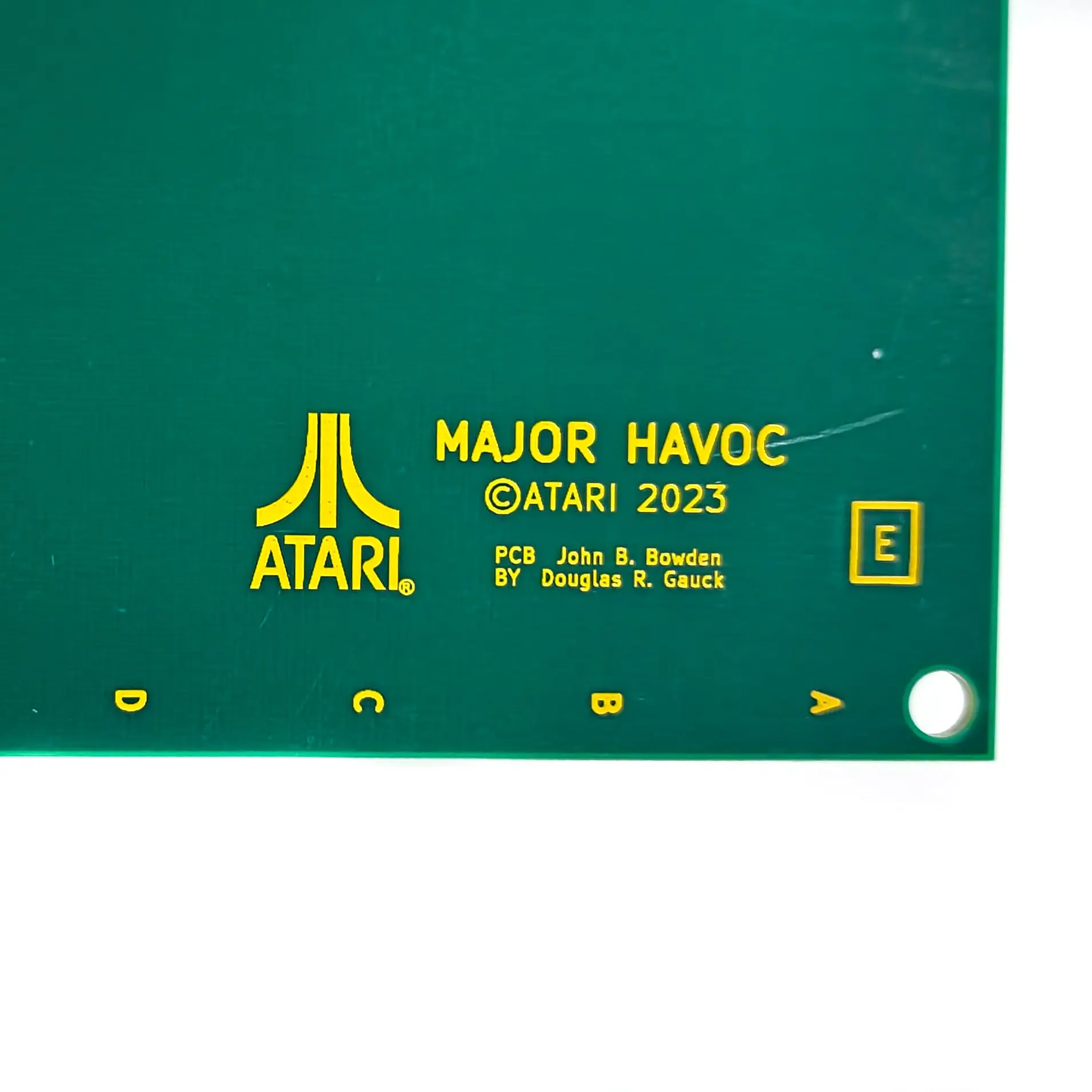

Done in a stunning matte green with yellow silk, these boards are serial numbered with official Atari licensed stickers. Don't miss out on a chance to own a piece of Atari history.

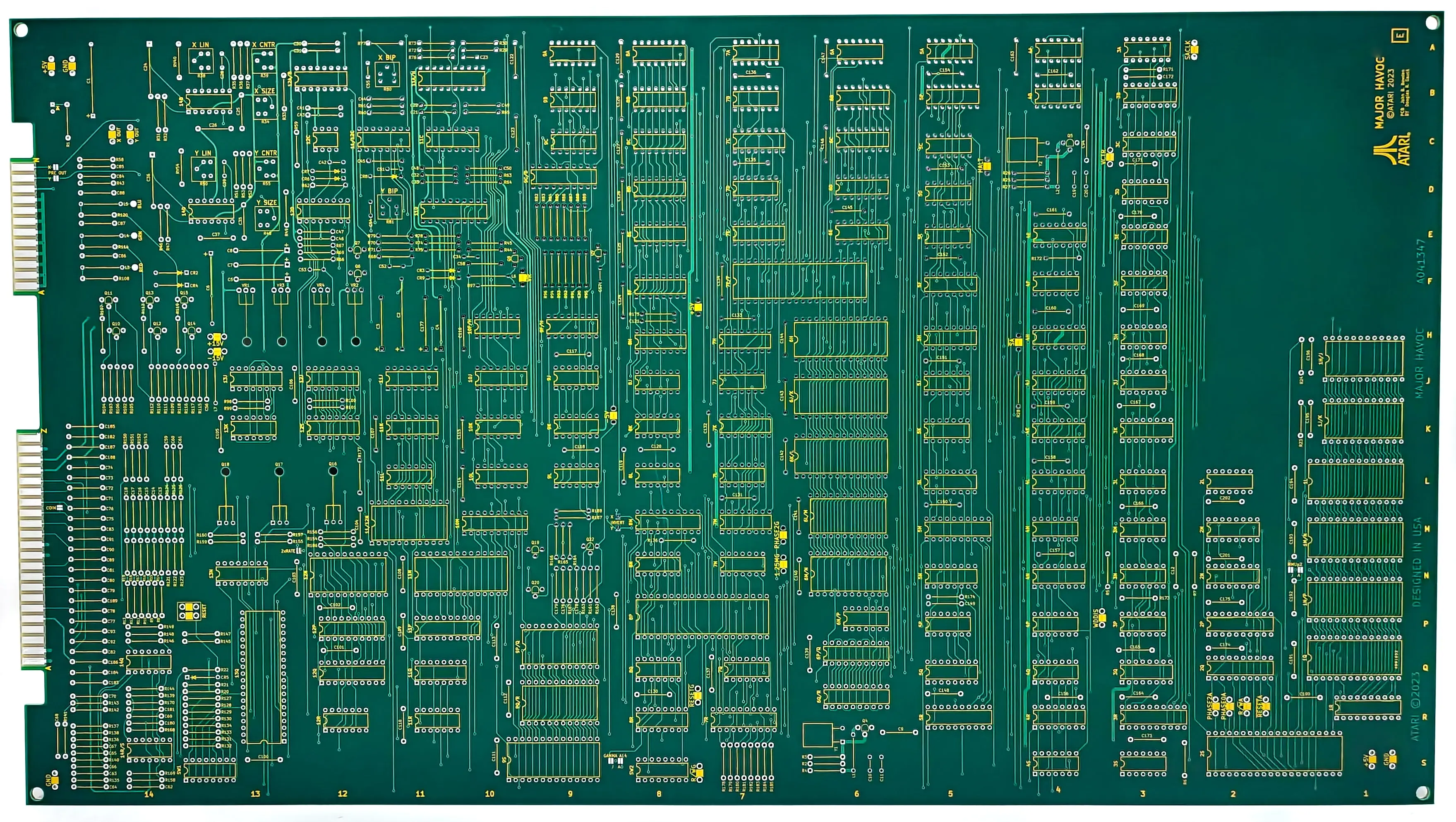

Major Havoc rev E: refinement of rev D, this board has unpopulated footprints removed which allows improved placement of chips (less densely packed), traces redrawn at 45ª, and spacing around the Quad POKEY, LETA, and speech chip sockets spread out to avoid physical contention. Split pads are labeled for configuring code version, X and Y invert, X and Y pre-out, and roller controller rate.

Licensed from Atari by Retro Arcade (Retroarcaderemake.com)
